SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

Choice: yes

Detection Angle: 110

Detection Range: 10m

High-concerned chemical: None

Model Number: zigbee motion sensor

Origin: Mainland China

Smart home platform: Other

semi_Choice: yes

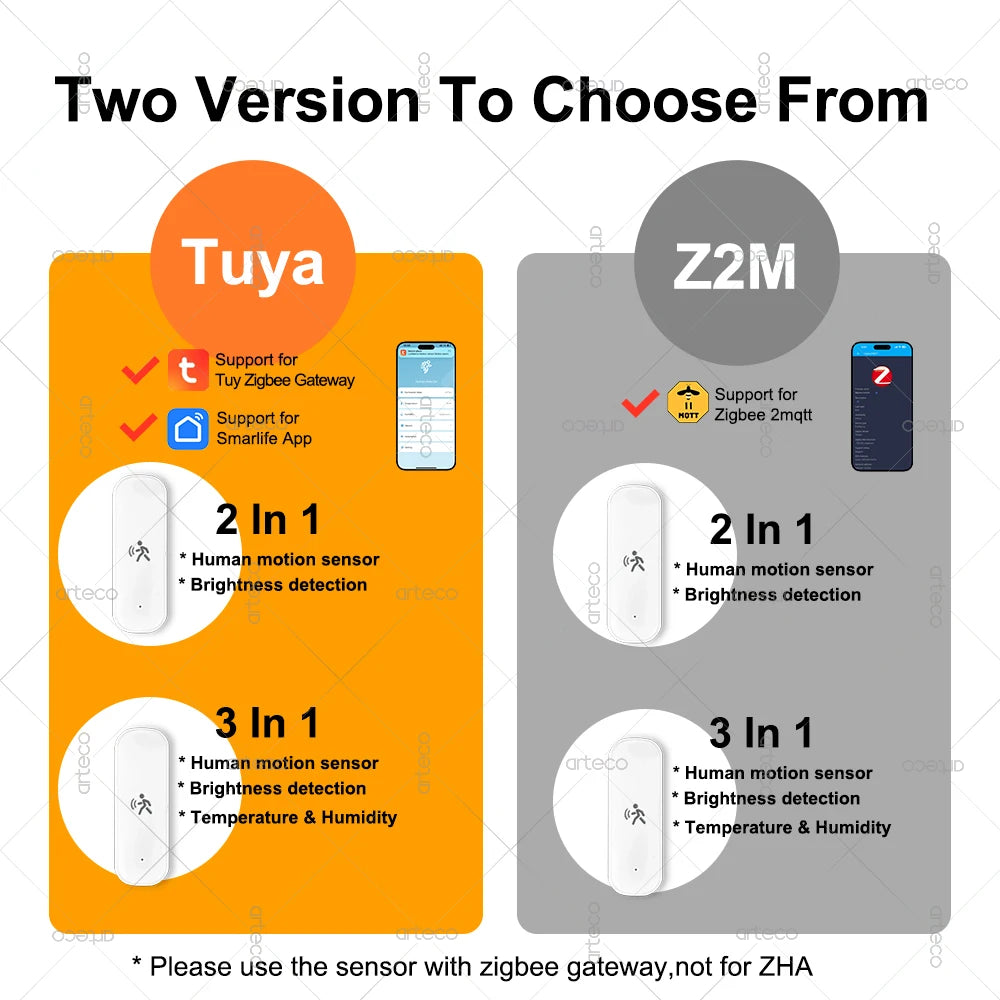

*What is the difference between (for tuya version) and (for Z2M version) ?

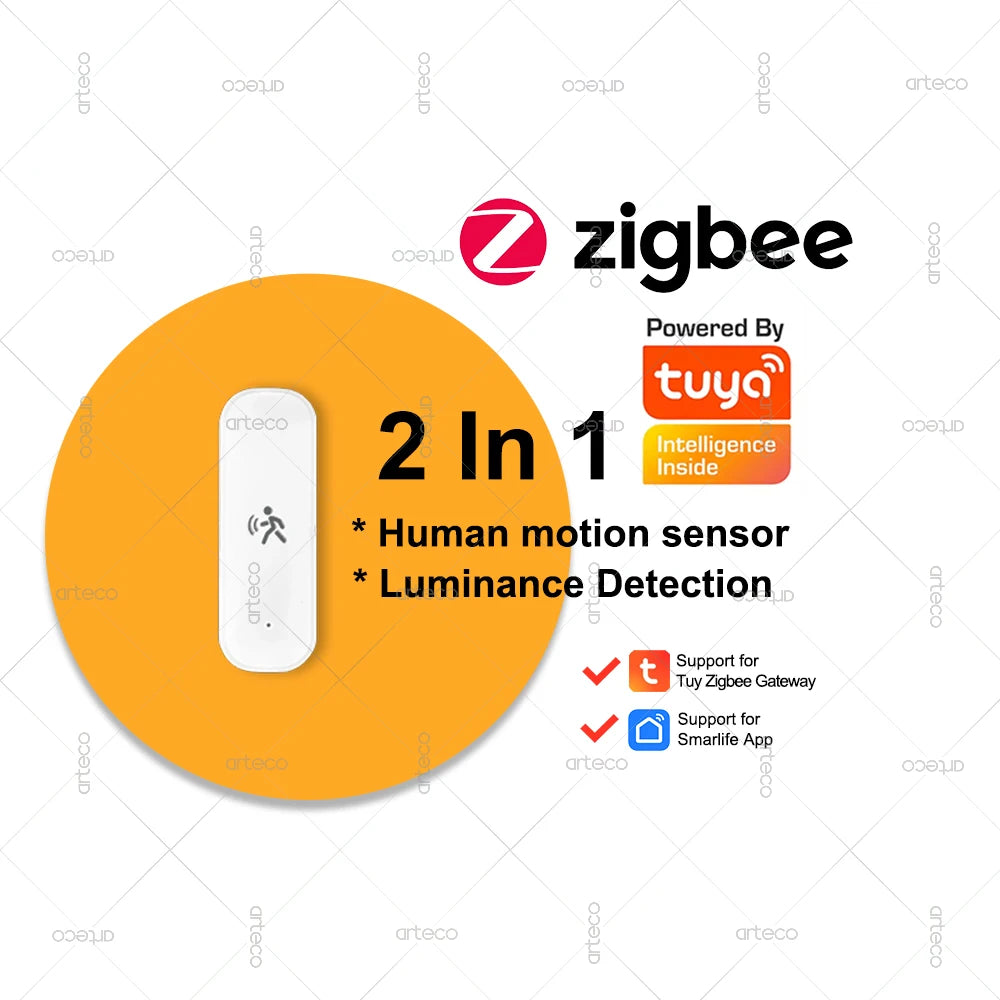

For tuya version: you can use it for tuya zigbee gateway ,use for tuya app or for smart life app.

For Z2M version : You can use it for zigbee2mqtt on home assistant ,not work for ZHA .

*What is the difference between (2 In 1) and (3 In 1) ?

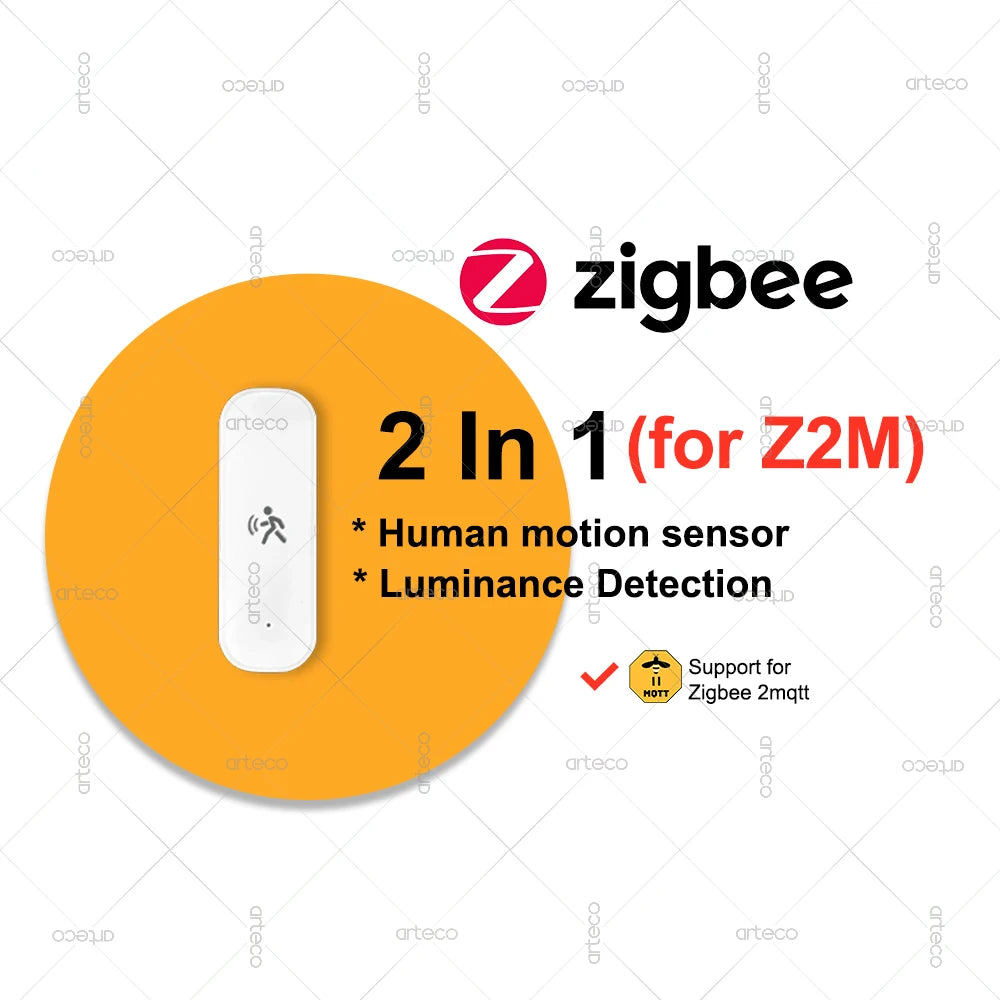

2 In 1: Zigbee motion sensor with luminance detection

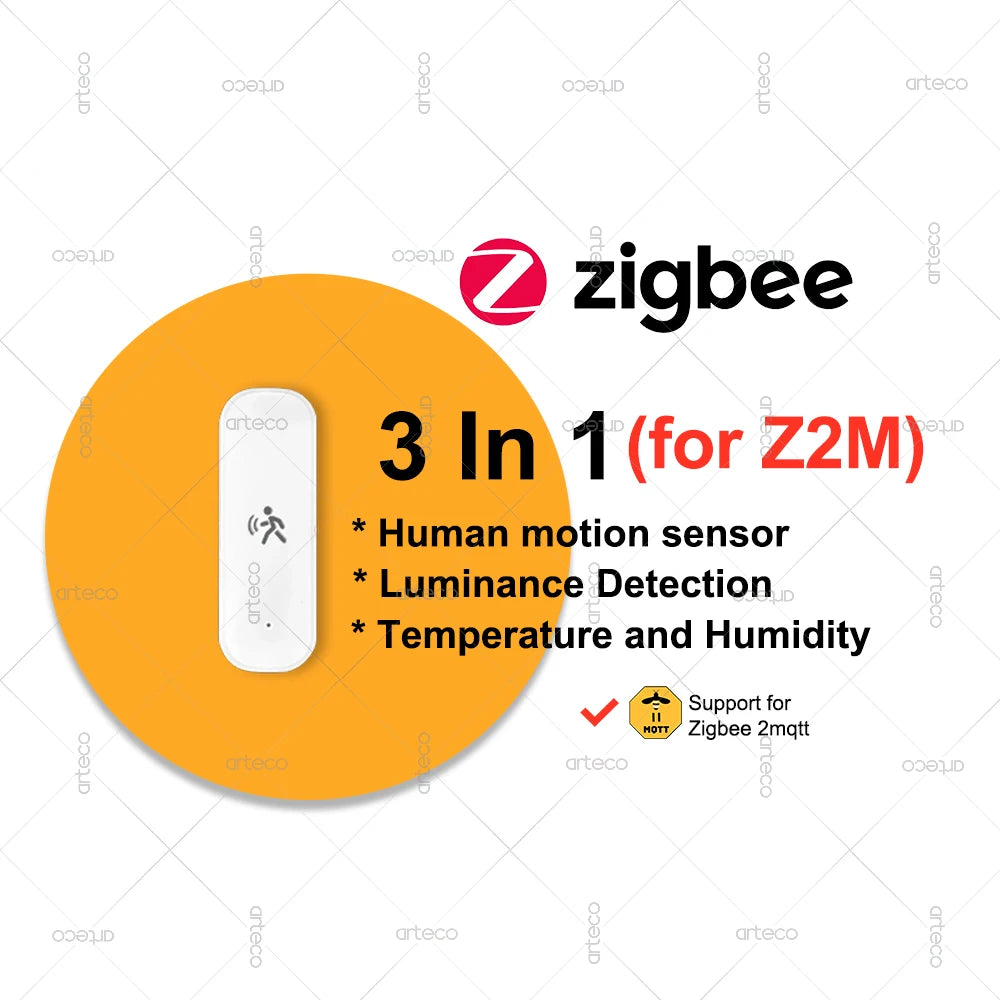

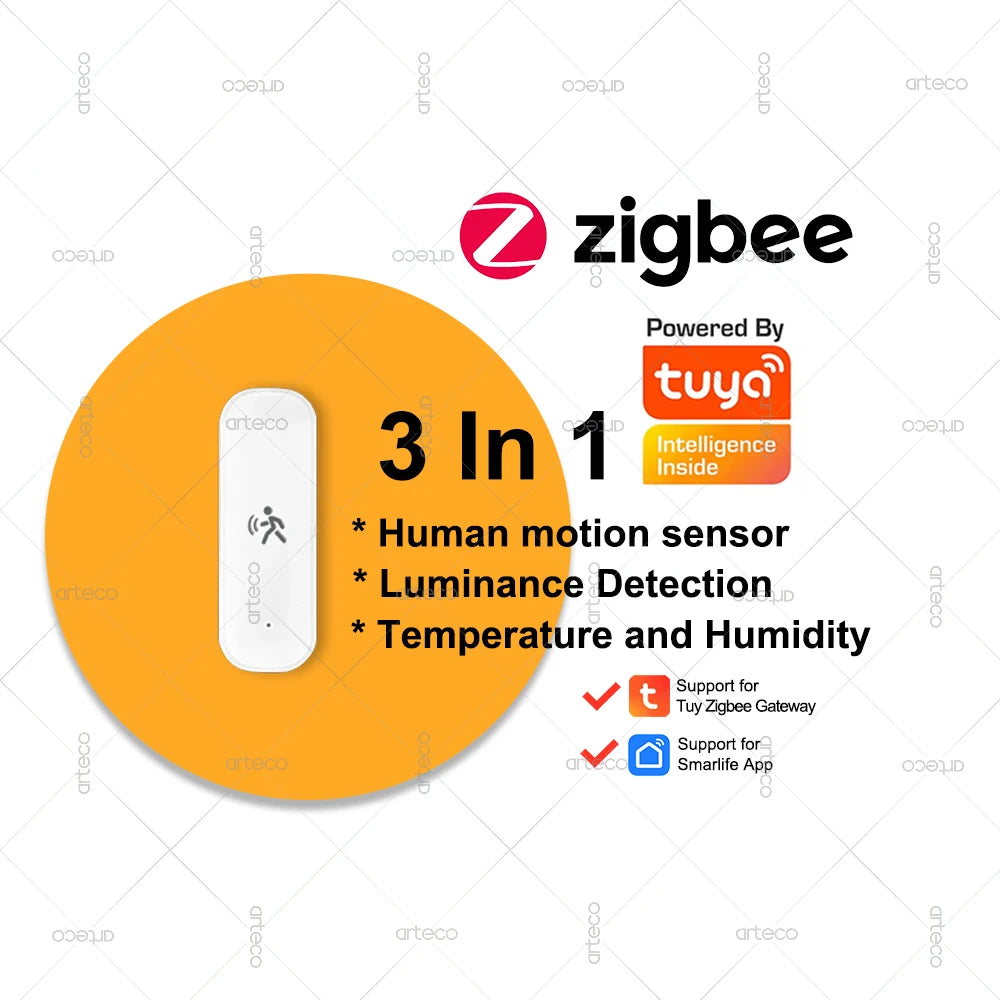

3 In 1: Zigbee motion sensor with luminance detection,with temperature and humidty detection .

*What is the difference between this 10g mmwave motion sensor and other pir motion sensor ?

Answer: This 10g mmwave motion sensor is built-in 10g mmwave radar ,detect the human motion. Please kindly know that it is not a presence sensor nor PIR sensor .

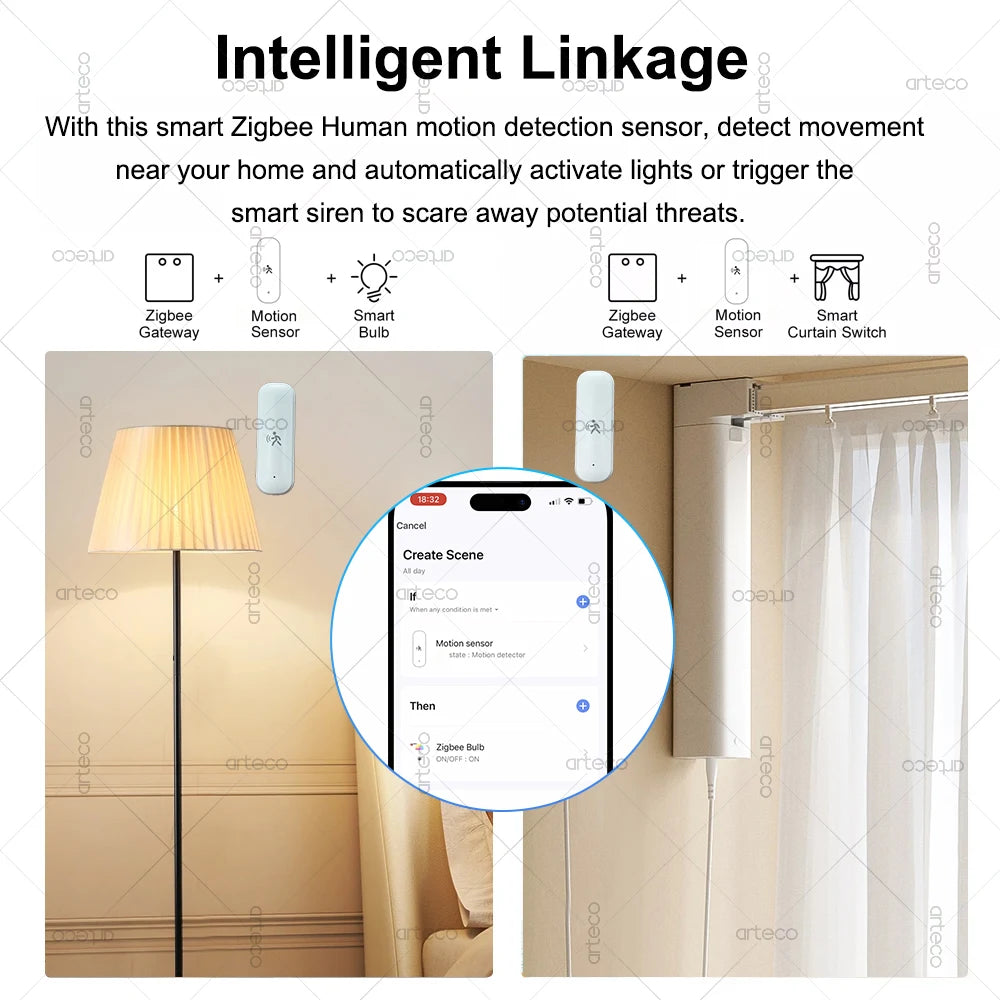

*How to create intelligent scene ?

Answer: If you want to create smart scene,please understand that  the sensor can only work basing on the motion . Not support for alexa voice control .

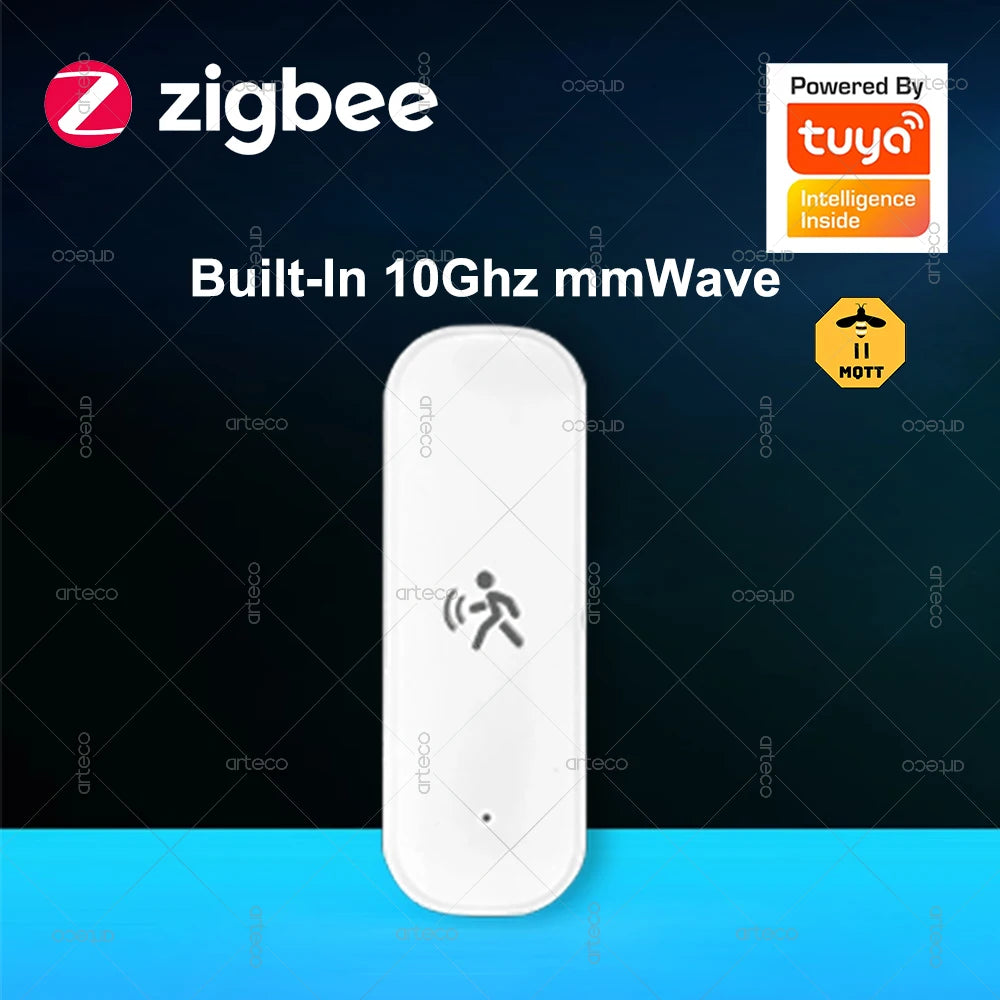

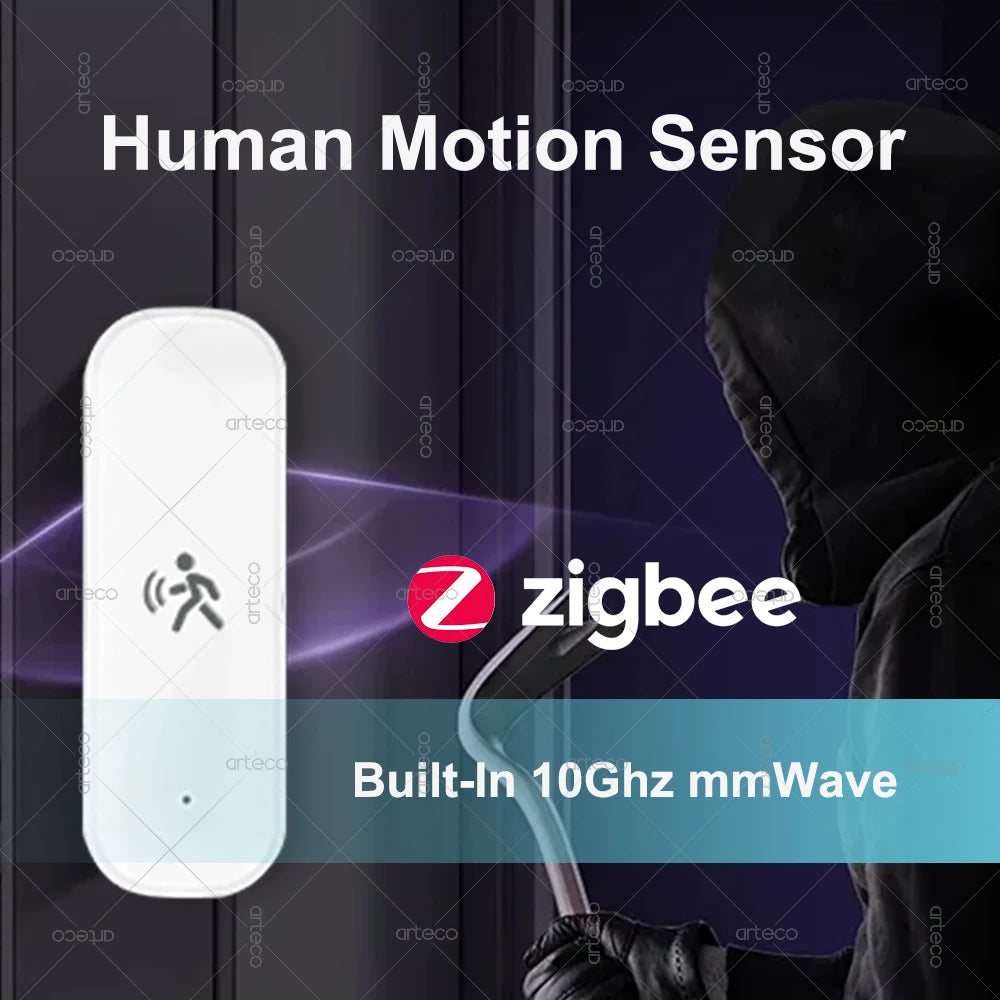

Product Name : Human Motion Sensor

Battery Type:2pcs*LR03/AAA(Not included）

Wireless Protocol: Zigbee3.0 (need to work with zigbee gateway)

MW Frequency:10.525GHz

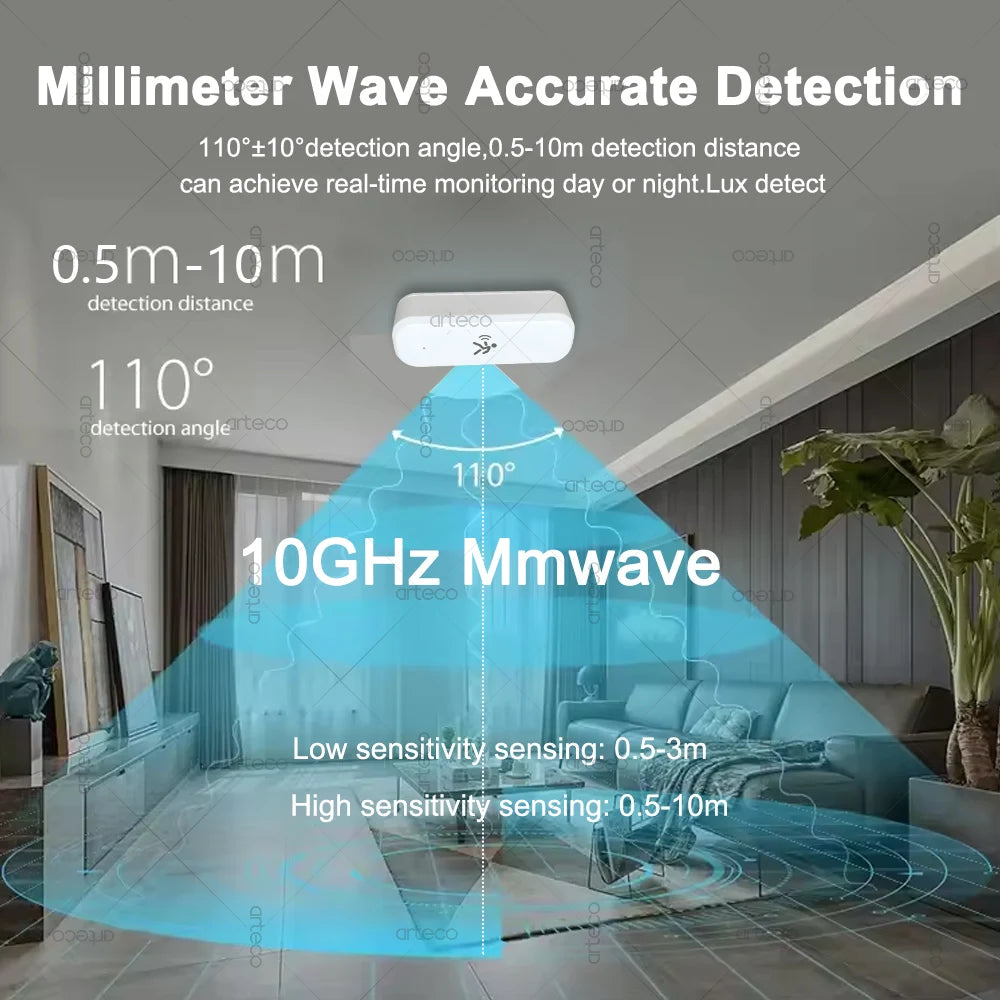

Detection Angle:110°±10°

Detection Distance:0.5~10meter（z axis）

Luminance Meter:0~3000Lux

Temperature Resolution :0.1°C

Humidity Resolution :1%

Temperature Measurement Accuracy:±0.3°C

Humidity Measurement Accuracy:±3%

Working Voltage: DC 3.0V

Standby Current ：≤80uA

Standby Time:≥8 Months

Working Temperature:-10°C~55°C

Working Humidity : max 99%RH

*Temperature and humidty parameters,products with only temperature and humidty sensor (only 3 in 1 version have this function )
